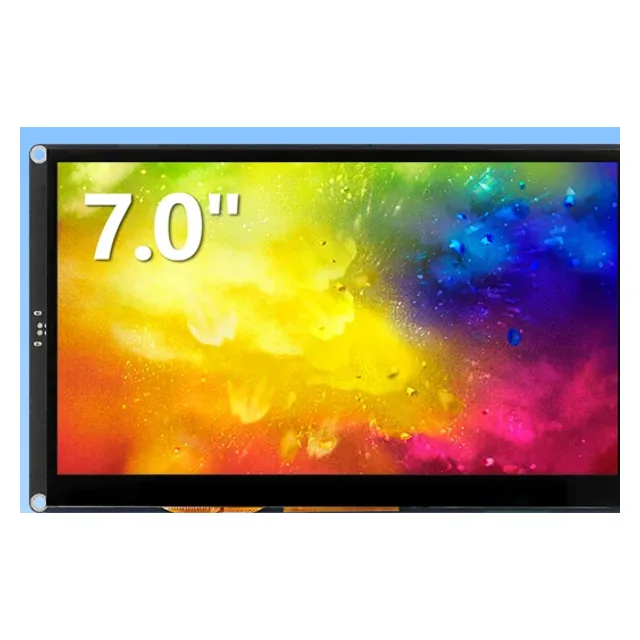

Elecrow CrowPanel Advance 7"
Also known as: CrowPanel Advance 7 · Elecrow 7 inch ESP32 HMI
The polished 7" HMI option: IPS + capacitive across the Advance line, onboard mic and speaker for voice work, and a unique swappable wireless socket (ESP32-C6 Wi-Fi 6, H2 Zigbee, or SX1262 LoRa/Meshtastic module). Ships with proper LVGL/SquareLine tutorials.
As an Amazon Associate and an affiliate we may earn from qualifying purchases. Prices and availability are set by the retailer.
At a glance
⚑ flag an error| SoC | ESP32-S3 |
|---|---|
| Vendor | Elecrow |
| Type | Display board |
| Memory | 16 MB flash · 8 MB PSRAM |
| Display | 7" 800x480 IPS (SC7277 (RGB panel), RGB bus), capacitive touch |
| Connectivity | Wi-Fi, BLE 5, swappable radio socket (Wi-Fi 6 / Zigbee / LoRa-Meshtastic) |
| USB | USB-C |
| Battery | No |
| Free GPIO | ~0 (after display/touch/SD) |
| Onboard extras | mic, speaker, sd |
| Typical price | $30-40 (street, varies) |
Compare all ESP32 display boards in one table →
Good for
Works with
Firmware and UI-stack support, with a known-good starting point where one exists. "Community" means an unofficial but working config or port.
- ESPHome Community support config / port →
- LVGL / Arduino Official support config / port →
- Meshtastic Community support
Gotchas to know
- SD, audio and the wireless socket share GPIO selected by DIP switches — several features are mutually exclusive; read the switch table.
- Essentially no free user GPIO (standard RGB-panel problem); expansion is via the UART/I2C headers.
- The SC7277 panel driver isn't in upstream ESPHome — Elecrow's official ESPHome examples (Jan 2026) are the path; check the open feature request for native support.
- Early hardware (v1.0/1.1) lacked backlight PWM — dimming needs a recent revision.
Variants
Advance line: 2.4/2.8/3.5/4.3/5.0/7.0" (all S3 N16R8, IPS, capacitive). The cheaper Basic line mixes resistive classic-ESP32 (small sizes) and S3 RGB (big sizes). A CrowPanel ESP32-P4 series (5-10.1", MIPI-DSI, $43-54) launched late 2025.
The ESP32-S3 inside
This board is built on the ESP32-S3 . See the SoC page for the full peripheral, GPIO and security details.
Bare modules on the same SoC:
Adding sensors?
Presence radars, climate, CO2, energy — the sensor comparison table covers what people actually wire to these boards, with ESPHome support status and clone-risk ratings per part. This board has few free pins (see above) — favour I2C sensors, which share two pins.
Resources
Community guides usually go deeper than this page: pinout diagrams, wiring, library setup and copy-paste example code from people who build with these boards daily.
