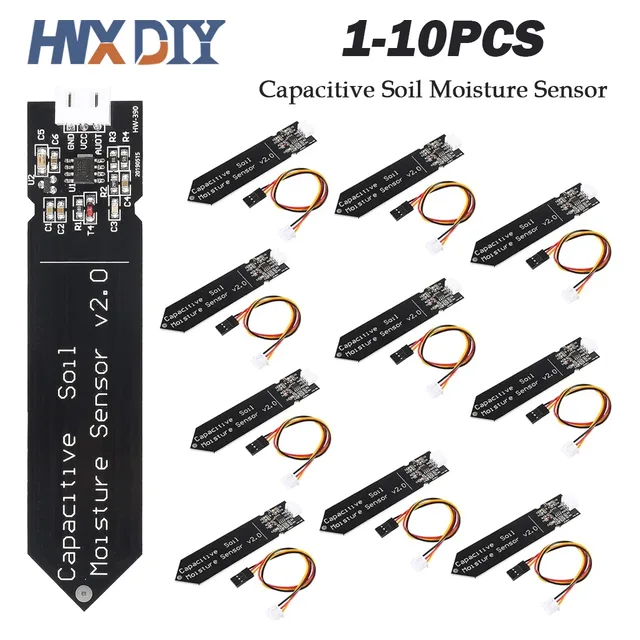

Capacitive soil moisture v1.2/v2.0
Also known as: capacitive soil sensor · soil moisture v1.2 · Garden & weather
The plant-watering sensor: capacitive sensing means no corroding electrodes (unlike the resistive junk), so a dollar probe plus an ESP32 waters the tomatoes all summer.
As an Amazon Associate and an affiliate we may earn from qualifying purchases. Prices and availability are set by the retailer.
At a glance
⚑ flag an error| Measures | soil-moisture |
|---|---|
| Accuracy | Relative moisture only — calibrate wet/dry per probe |
| Interface | analog |
| Supply | 3.3–5 V |
| Battery-viable | Yes (deep-sleep friendly) |
| ESPHome | Generic ESPHome component (adc/gpio) — adc |
| Typical price | $1-2 (street, varies) |
Compare all sensor modules in one table →
Clone check
HIGH clone risk. The most gotcha-dense $1 sensor in the hobby: clones ship an NE555 instead of the TLC555 (misbehaves at 3.3 V) and omit the 1 MΩ bleed resistor. If readings are stuck or supply-dependent, that's why. How to check what you received →
Good for
Gotchas to know
- The board edge and electronics are NOT sealed despite the marketing — conformal-coat the top and heat-shrink above the soil line or it dies in weeks.
- Readings are relative: calibrate each probe's dry/wet values and map to percent in ESPHome.
- Power it from a GPIO only while sampling — continuous power accelerates corrosion and saves battery.
- Avoid resistive (YL-69 fork) sensors entirely: electrolysis destroys them in weeks.
Wiring it up
Analog output: use an ADC1 pin (ADC2 fights with Wi-Fi), expect the ESP32's ADC to be nonlinear at the extremes, and calibrate in software. Any dev board with a spare ADC pin works.
