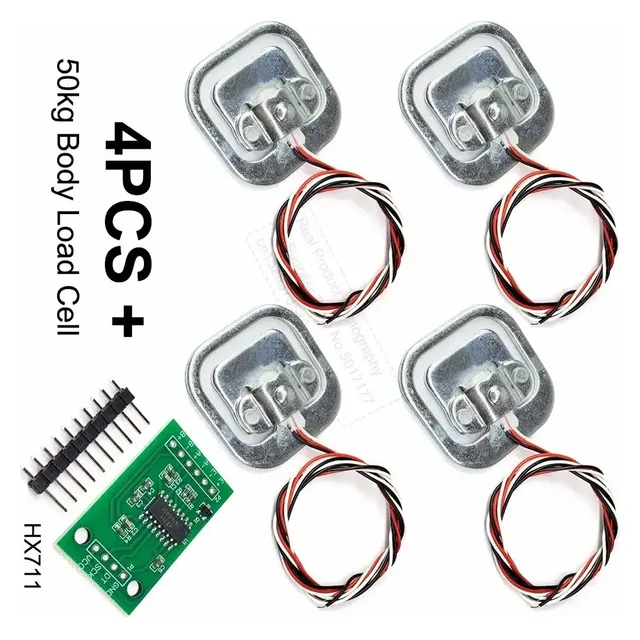

HX711 + load cells
Also known as: HX711 · load cell amplifier · More staples
Weight as a smart-home signal: load cells under the bed legs for the best presence detection there is, under the keg for beer level, under the cat feeder for 'did she eat'.
As an Amazon Associate and an affiliate we may earn from qualifying purchases. Prices and availability are set by the retailer.
At a glance
⚑ flag an error| Measures | weight |
|---|---|
| Accuracy | 24-bit ADC for strain gauges; grams-level with calibration |
| Interface | GPIO (two-wire clock/data) |
| Supply | 2.7–5 V |
| Battery-viable | Yes (deep-sleep friendly) |
| ESPHome | Native ESPHome component — hx711 |
| Typical price | $1-4 (street, varies) |
Compare all sensor modules in one table →
Clone check
Medium clone risk. Clone boards strap the rate pin to 10 Hz and use noisy regulators; if readings wander, re-strap to 80 Hz off / clean 3.3 V helps.
Good for
Gotchas to know
- Temperature drift is real: auto-zero in software when the known-empty state occurs.
- Four half-bridge cells need correct corner wiring — follow a diagram, not vibes.
- Mechanical mounting quality decides accuracy more than the electronics.
Wiring it up
Simple wiring: one data GPIO on any ESP32 dev board.
