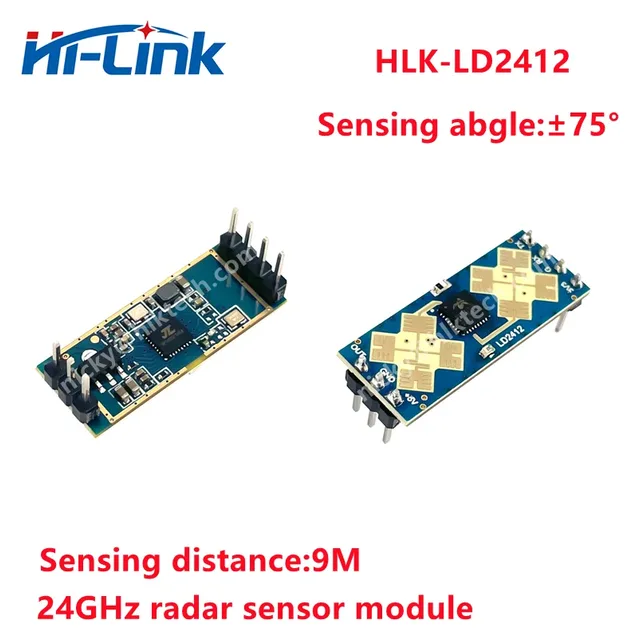

HLK-LD2412
Also known as: LD2412 · Hi-Link LD2412 · Presence & motion
The 'LD2410 but better at people who don't move': longer range and stronger stationary detection. It's the static-presence half of the dual-radar recipe (LD2450 for tracking + LD2412 for stillness) used in 2026's best DIY sensors.
As an Amazon Associate and an affiliate we may earn from qualifying purchases. Prices and availability are set by the retailer.
At a glance
⚑ flag an error| Measures | presence, motion |
|---|---|
| Accuracy | 24 GHz radar tuned for still/seated presence, to ~9 m |
| Interface | UART |
| Supply | 5 V |
| Battery-viable | No (continuous draw) |
| ESPHome | Native ESPHome component — ld2412 |
| Typical price | $5-8 (street, varies) |
Compare all sensor modules in one table →
Which one do I buy?
Upgrade pick over the LD2410 when rooms are big or people sit very still; skip it if a $4 LD2410 already covers your room.
Clone check
Good for
Gotchas to know
- Newer part — fewer tutorials than the LD2410; the ESPHome component landed with the 2026.3 LD24xx overhaul.
- Same tuning discipline as every mmWave: gates, sensitivity, placement.
Wiring it up
Give it a hardware UART (UART1/2 on any ESP32) rather than software serial — the radars talk at 256000 baud. Any dev board works; the DevKitC class is the default host, and if you're building a sensor-plus-screen device, pick a display board with spare pins like the JC3248W535.
